Usage

Run a script from examples

The script below runs a simulation of the NACA 0012 Airfoil, and is included in the examples folder.

To run the above python script:

  • Copy the examples directory to a different location (to avoid changes to your clone of the repository):

$ cp -r <path-to-repository>/examples <path-to-examples-directory>

  • Navigate into the directory:

$ cd <path-to-examples-directory>

  • Run the python script:

$ python example.py --inputFile <path-to-input-yaml-file>

Note

  • The script can be run in a docker container or on a local machine.

  • If you are using a docker container, make sure to mount the examples directory to the container.

  • If you are using a local machine, make sure to have the required dependencies installed.

  • The script can be run in parallel by using the --parallel flag.

  • The script can be run in batch mode by using the --batch flag.

  • The script can be run in debug mode by using the --debug flag.

  • Do not use mpirun to run a script with mdss. Because, it runs simulations on subprocesses and using mpirun results in an error.

  • Example input yaml files to run on local machines are stored in examples/inputs/Local directory, and for Great Lakes HPC cluster, an example file is stored in examples/inputs/GL.

  • Make sure to modify the file and file paths to absolute paths in the yaml file when running in a docker container.

Use examples/inputs/Local/naca0012_sinInfo.yaml or examples/inputs/GL/naca0012_sinInfo.yaml (for Great Lakes) to test the package with NACA0012 airfoil.

After execution, the following results are expected which are saved in the specified output directory.

  • A copy of the input yaml file in the output directory.

  • overall_sim_info.yaml in the output directory.

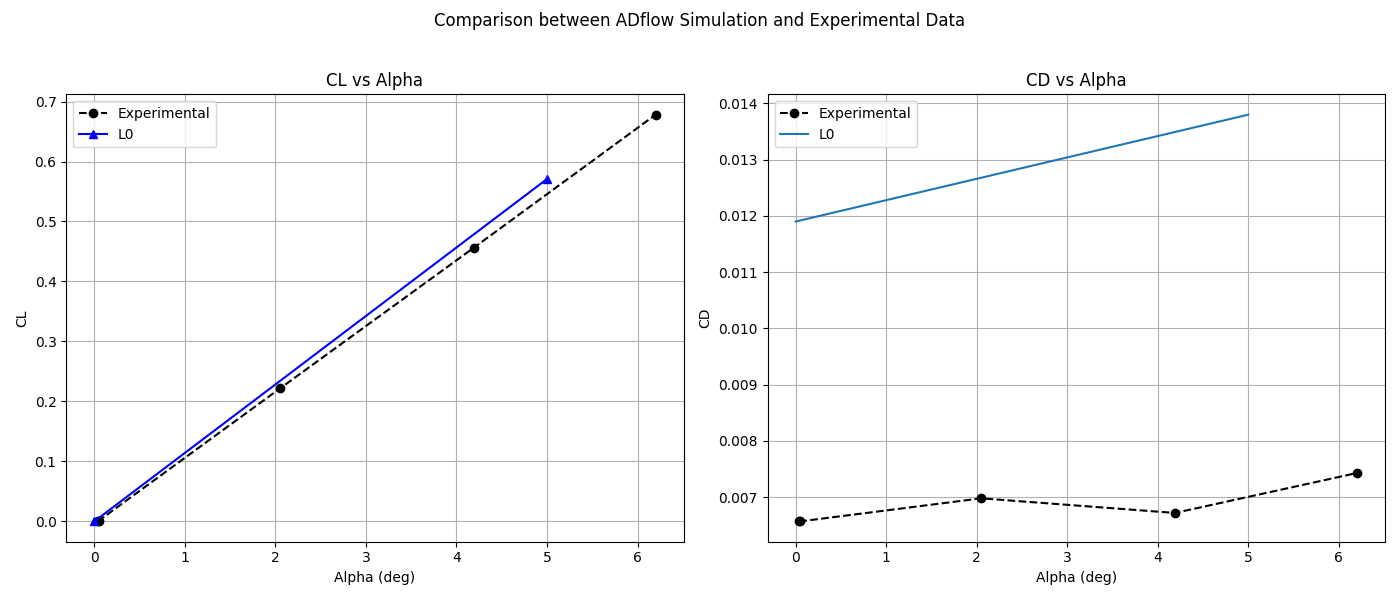

  • ADflow_Results.png in each experimental level directory, that is a plot comparing \(C_L\), and \(C_D\) values at all refinement levels to the experimental data(if provided).

Results for NACA 0012

  • ADflow_output.csv in each refinement level directory, that is a file containg Angle of Attack(AoA), CL, and CD data.

  • aoa_<aoa>.yaml in aoa level directory, that contains the simulation information particular to that angle of attack.

  • Default ADflow outputs: A tecplot file, a CGNS surface file, and a CGNS volume file.

Example usage

Here are quick examples of how to different classes and functions in mdss:

Running Simulations

from mdss import simulation
from mdss import post_process

# Initialize the runner with configuration file
sim = simulation('/path/to/input-yaml-file')

# Run the simulation series
sim.run()

# Run the post-processing
pp = post_process('/path/to/output-directory')
pp.gen_case_plots()

Additional Information

Grid Files

Grids for NACA 0012 and Mc Donnell Dolugas 30P-30N are provided under examples/grids in the examples directory. The other grids (CRM clean, and DLR High-Lift) including Naca 0012 and 30P-30N can be found at Dropbox folder.

Aero and structural grid files for the Mach Aero Wing can be downladed from mphys repo. An example input yaml file for the Mach Aero Wing is provided in examples/inputs/Local/mach_aero_wing.yaml. The example yaml file is set up to run on local machines.

Experimental data

Experimental data for NACA 0012 and Mc Donnell Dolugas 30P-30N are provided under examples/exp_data in the examples directory. The other dat (CRM clean, and DLR High-Lift) including Naca 0012 and 30P-30N, and their references can be found at Dropbox folder.
